Running Track Steel Study

running track steel

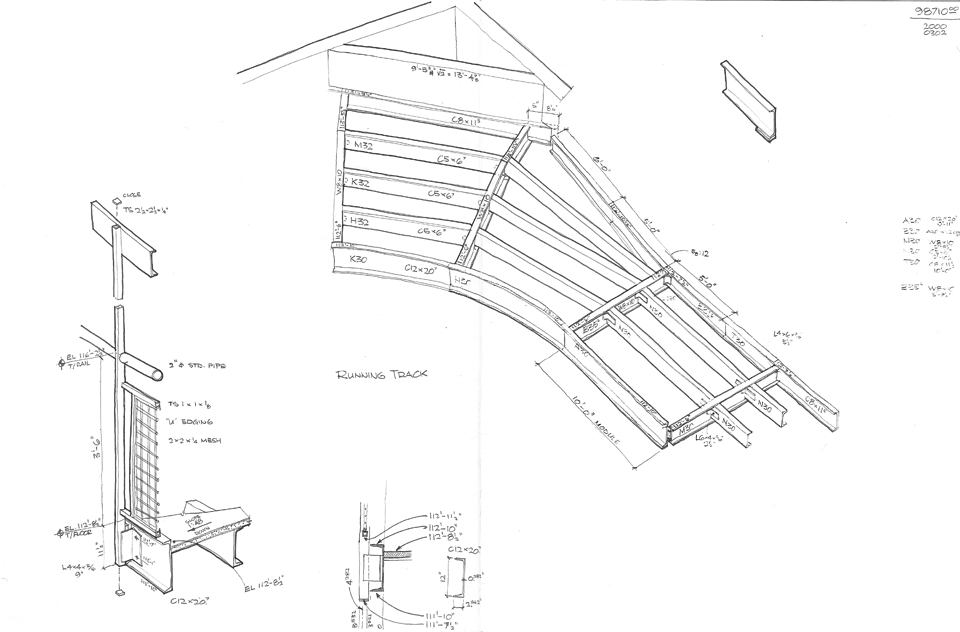

I was the project manager for several athletic facility projects at an architecture firm between 1997 and 2001. Steel shop drawings came in and this drawing is an attempt to rectify the shops with architectural design. The drawings could be confusing. My time was relatively inexpensive, so I was often asked to geek out the details and interpret them for my superiors so we could verify they were in the spirit of design. This drawing was intended to serve as a communication tool between subcontractor and my boss in the days before digital sketching of such details was considered practical. Produced 2 March 2000 = Tayya 6331, six dozen third phase (Añikç-Epravinal Xrga, “Househunting Life Phase”).
