Hollow-Core Plank Rail Study 2

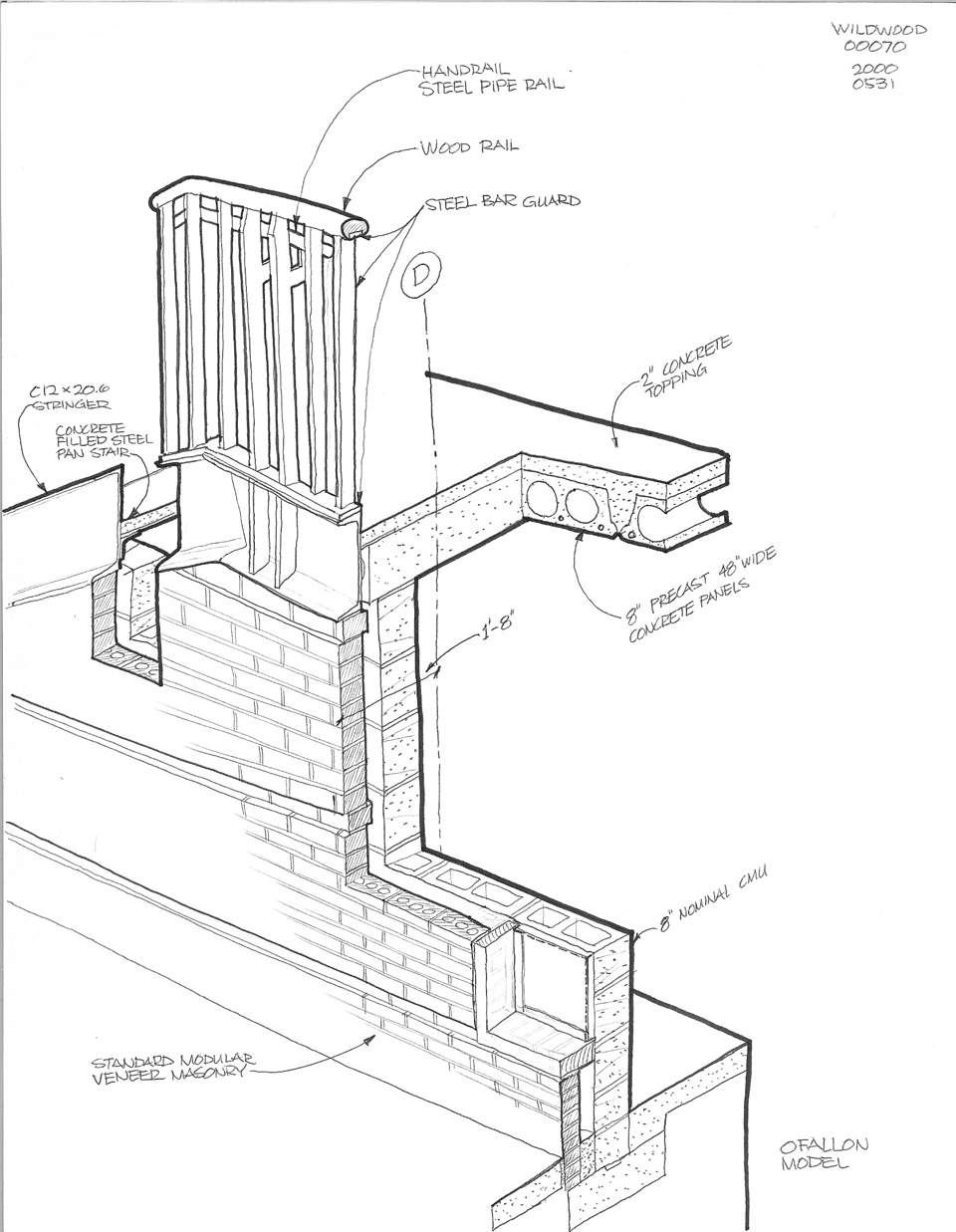

This is the second of two options for a stringer-fascia, this showing steel tubes. The drawing integrates various details (the CMU grade beam, with grouted cavity, the bearing of hollow-core planks at the top of the wall) into a single drawing. The drawing is a communication tool that helped the Owner’s representative make a decision. This is the fifth of 7 detail studies on the same day. Produced 31 May 2000 = Tayya 63a7, six dozen third phase (Añikç-Epravinal Xrga, “Househunting Life Phase”).
