Vinci Digital Worksite™ | South Tunnel Intercept

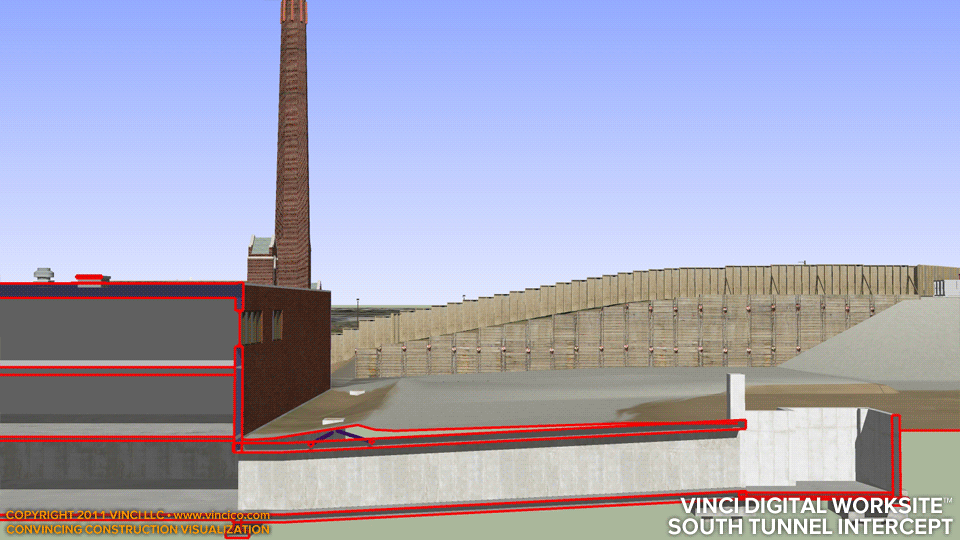

Proposed projects in schematic phases often haven’t had enough time to consider systemic interaction with the things around them on site. This is your team’s opportunity to illustrate the depth of your understanding regarding the worksite, and a chance to develop or revise strategy to account for conditions others haven’t yet uncovered. This image shows the connection of a proposed academic building to an existing neighboring basement. The early presence of this tunnel closes the space between the existing and proposed structures to heavily-loaded vehicles. Take a look at the connection from a bird’s eye view. Wow, that’s quite some bank retention back there, take a look at a cross section of it here.
