Most digital modeling endeavors feature a library of predefined objects, sometimes called “blocks” or “components”. These blocks can be used repeatedly once they are defined. Their quality depends on the care the definer took when building the object in the first place. The definition time and file size associated with each object are limiting factors in their usability and production.

“Vail™” is an acronym for the Vinci Ancillary Imagery Library™, a digital toolbox entirely produced by Vinci LLC. Vinci’s Vail™ is a construction-specific toolbox with just enough articulation to produce illustrations that effectively communicate your construction message to your audience. Vail™ objects are built to industry-standard scale resulting from Vinci’s research. The research taps industry standard sources as well as actual worksite observation. Vail™ objects are intended to be “words” in our graphic construction story. The more faithful these digital objects are to their real-world antecedents, the clearer our message. Vail™ objects can eliminate paragraphs of explanation. Why explain what a lattice boom crawler crane is when you can show it to your audience? Chances are most folks involved in facility planning have seen what you’re talking about. This frees you up to talk about how your company is best-suited for the job.

Scroll down to see the latest objects in our toolbox.

Click here to return to the Vinci LLC home page »

Recent Vail™ Developments

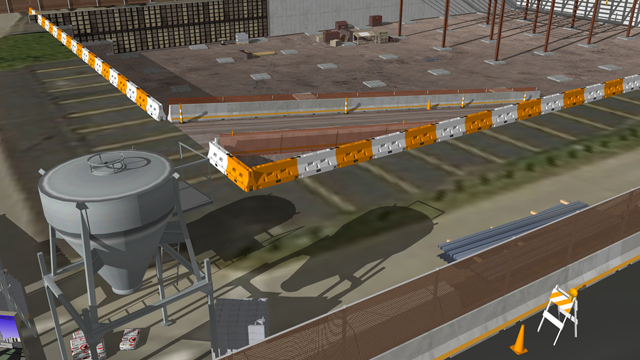

March 2008 | Water Filled Barriers
Two of three types of water filled barriers observed at the Orlando airport. Striped and plain; white and orange color, 22 permutations.
This complements the Vail™ traffic channelization and perimeter object collection. More»

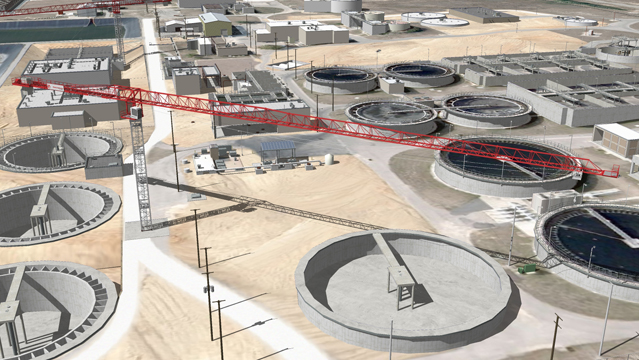

February 2008 | Topless Tower Crane Kit
Sponsor-requested crane, built to the specifications of a major European manufacturer, with configurations as shown by a national leasing company. All industry-standard permutations of this crane can be produced. Custom branding available.
This is the second Vinci® Vail™ tower crane. More»

January 2008 | Roll Off Storage Containers
Three industry-standard sizes, five styles, two chassis styles, both observed on construction sites, most recently in December 2007. Vinci branded (59 objects) or unbranded (57 objects), open (60 objects) or closed (56 objects). Custom branding applied for four principal clients, 40 objects. Two lines of client branded vaults are derived from actual site photographs of the antecedents.
Only one roll off storage container was defined before this set; this was branded for one Vinci LLC client. The deprecated object was developed in October 2004. More»

December 2007 | Rooftop Mechanical Trim
Rooftop exhaust (18 sizes), architectural louvered supply air vents (12 sizes), architectural ribbed supply air vents (13 sizes, 2 variants, 35 objects total), security supply or exhaust air vents (6 sizes), standard supply air vents (6 sizes), louvered supply air vents (6 sizes), makeup air vents (4 sizes), rooftop walk mats (5 sizes), roof access hatches (4 sizes).
These objects replace the deprecated general rooftop mechanical trimset devised by Vinci LLC in early 2005.

November 2007 | Roll Off Octagonal Compactors
Three sizes, two variants, six objects total.
This set was produced as one half of a planned development to address recurrent loading dock access illustrations.

October 2007 | Concrete Mix Silos
Nine capacities.
This set was defined in June 2007, but suspended as it was not a critical set. Original 2005 hopper (smallest) was remastered.
The silos are more applicable to intensive concrete applications such as highway construction, and were observed in Kansas City, Kansas and Peoria, Illinois.
