Parapet-Canopy Study

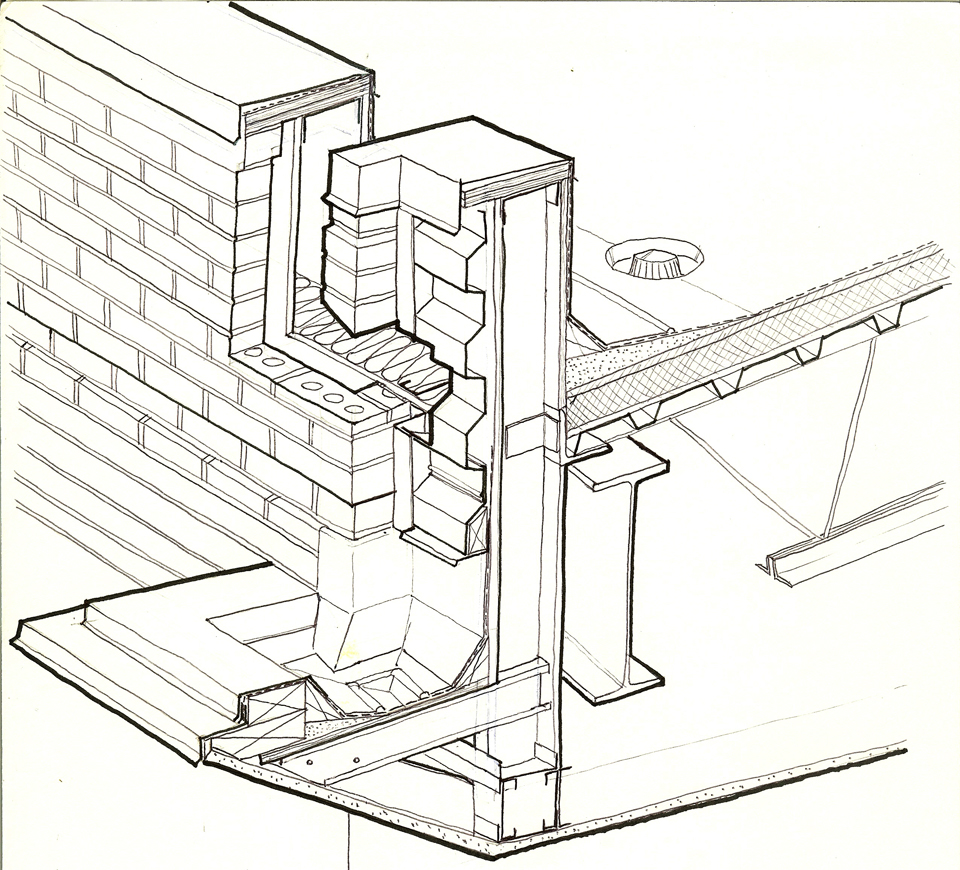

Generally the proposed building was brick veneer with CMU backup: this wasn’t so at the canopy. This drawing examined the condition at and above the canopy, sectioning into the wall and roof as well as in plan. The drawing is a communication tool that helped the chief design architect, design team, and Owner understand the issues at this athletic facility. This is the third of 7 detail studies on the same day. Produced 31 May 2000 = Tayya 63a7, six dozen third phase (Añikç-Epravinal Xrga, “Househunting Life Phase”).
