k63a8 eAthletic Facility Constructability Studies |
Lobby Atrium Exterior Study

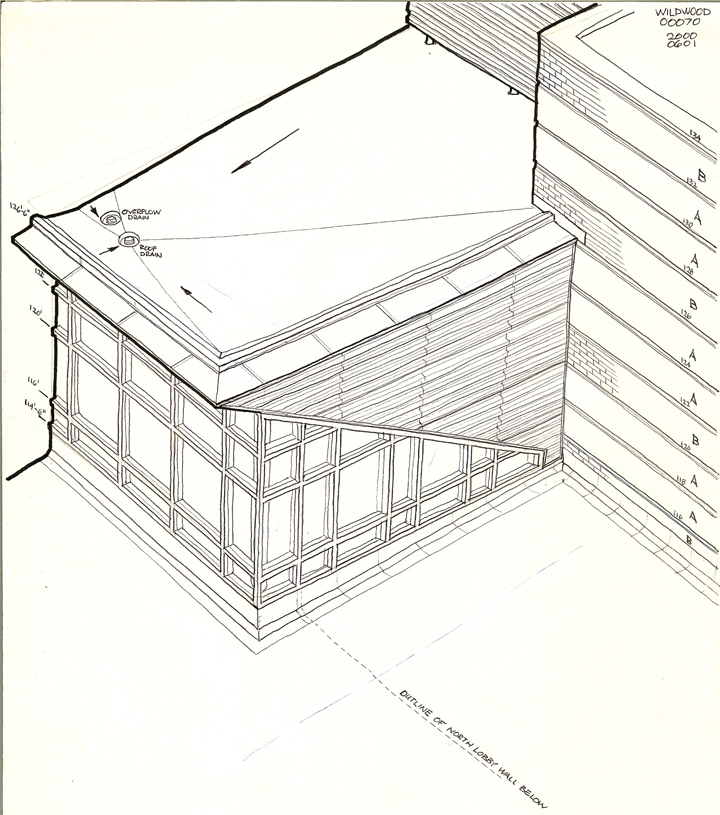

This sketch brings together the planned wall construction types to communicate the construction configuration between members of the building team. The image is a counterpoint to the interior condition shown at k63a8f. The pair of drawings would make for an excellent current digital model vignette. Produced 1 June 2000 = Tayya 63a8, six dozen third phase (Añikç-Epravinal Xrga, “Househunting Life Phase”).
