4d virtual construction visualization sidewalk bend

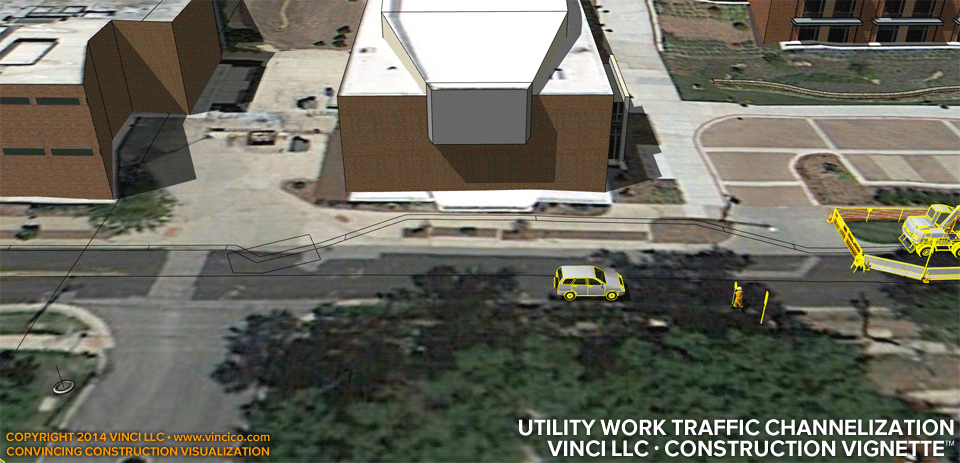

4d Construction Worksite Detail | Trench West | Sidewalk Bend.

Vinci LLC’s Digital Worksite™ service produces Detail Construction Sequences like the one above, encapsulating construction within a major segment of the project from a single view. This segment leaves the roadway to trench around existing underground utilities and terminates at a manhole in the street. This manhole is unfortunately located in front of a delivery dock, necessitating the shutdown of the dock for a brief time. A bore must be made over the manhole site before installation, then the trench proceeds to the left toward the final segment of the trench.
