Water Treatment Tertiary Pump Station Model

Vinci Digital Worksite™ | Tertiary Pump Station.

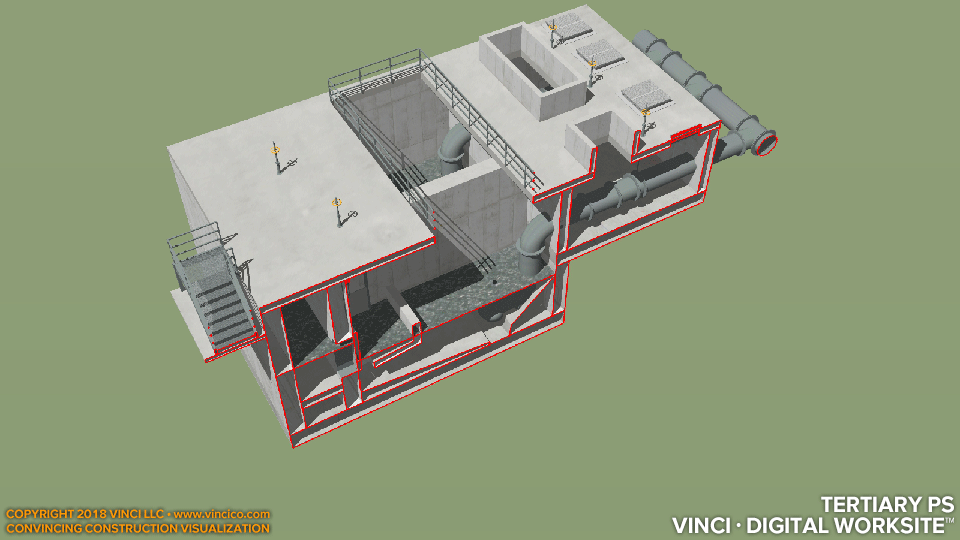

Vinci Digital Worksite™ model of a tertiary pump station for a waste water treatment facility at A9A09. Model includes footings, foundation walls, reinforced concrete slabs, walls, and weirs, formwork, structural steel and bar joists, metal decking, roof and wall insulation, face brick, fenestration, electrical lights and panels, sluice gates, process mechanical (pumps), connections to yard piping, and galvanized steel accessways and stairs.

Click for more: wet infrastructure project examples or modeled facilities, project schedule; preliminary facility scheduling.
