Scale Assurance and Directive Overlay

Vinci SurePlan™ | Massing Stack from RFP Directives

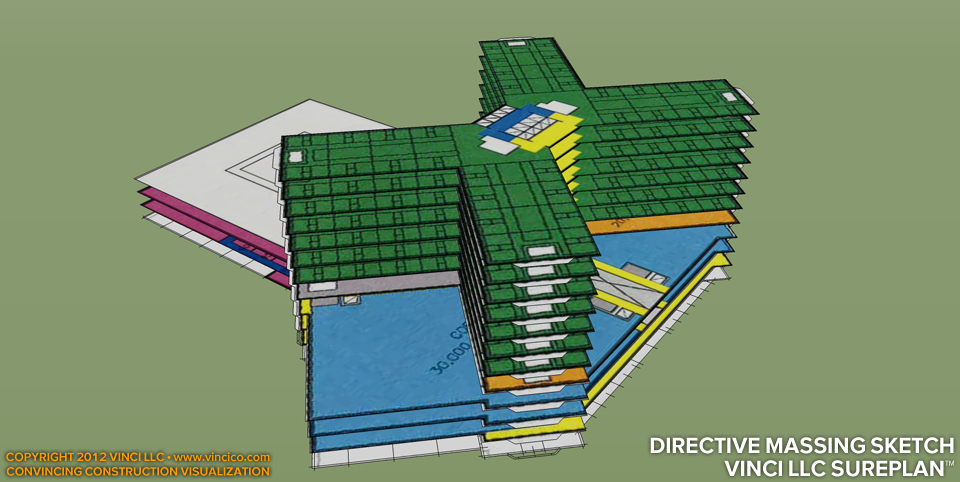

The RFP supplied block diagrams with areas in square feet. Vinci LLC used this information to mock up the building mass, then used the audience organization’s web-available renderings to produce a plausible likeness of the replacement hospital in time for the interview. The areas in the massing sketch shown here were used to double-check the worksite scale.
