Healthcare Infill 4d Transverse Section from Schematic Plan

Vinci Digital Worksite™ | 4d Transverse Building Section

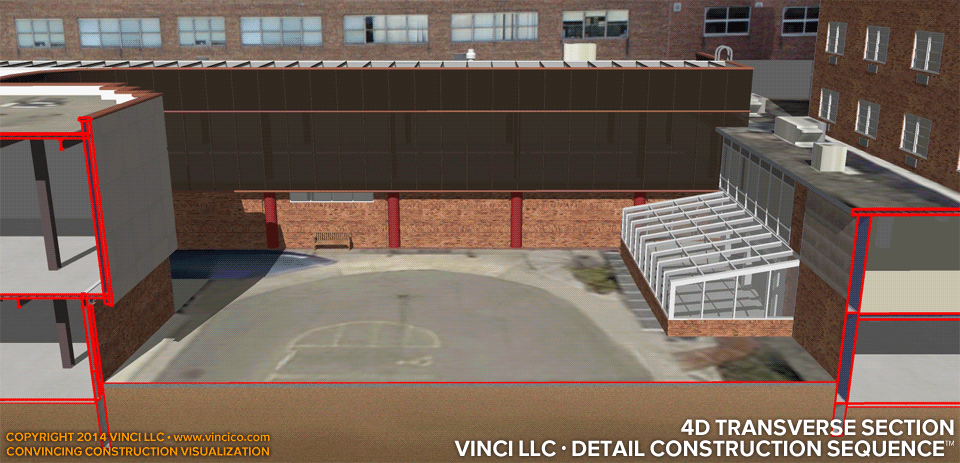

Ever want to take a chainsaw up to the presentation screen and show the Owner what’s inside? Vinci LLC can do this in not quite such a noisy, melodramatic, and startling way by taking sections through the building. This particular section helps Vinci’s client speak to building interface issues. A visual showing the uneven building separation joints and uneven floors clearly conveys the issues and helps prove to the Owner that you are on top of things!

Take a look at a section perpendicular to this one, through the curtainwall beyond.
