Water Treatment Headworks Facility Model

Vinci Digital Worksite™ | Headworks.

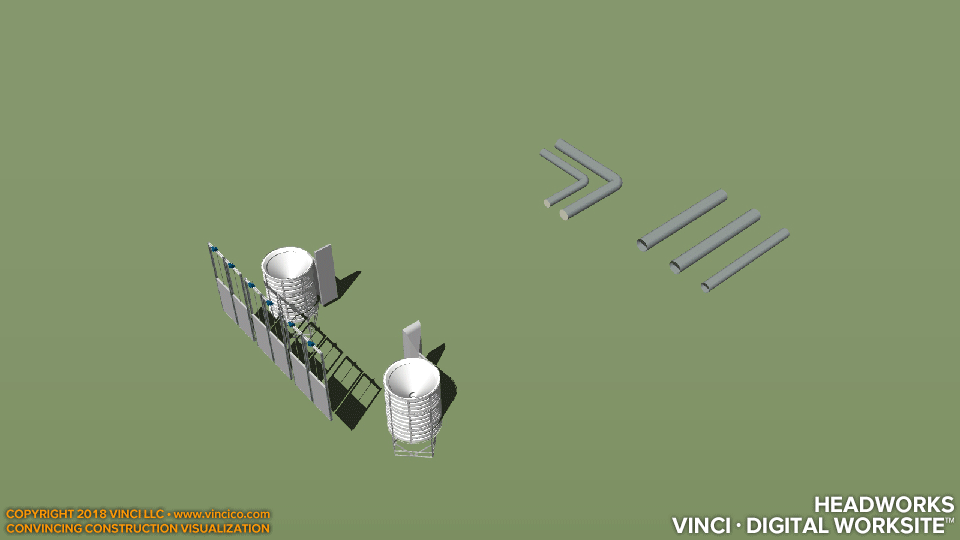

Vinci Digital Worksite™ model of the headworks for a waste water treatment facility at A9A09. Model includes footings, foundation walls, reinforced concrete floors, walls, and weirs, slabs on grade, formwork, reinforced masonry, structural steel with bar joists, metal deck, roof and wall insulation, roofing, mechanical, process mechanical including filters, connections to yard piping, face brick and terra cotta tile, fenestration.

Click for more: wet infrastructure project examples or modeled facilities, project schedule; preliminary facility scheduling.
