Water Treatment Bionutrient Reactor Facility Model

Vinci Digital Worksite™ | Bionutrient Reactor.

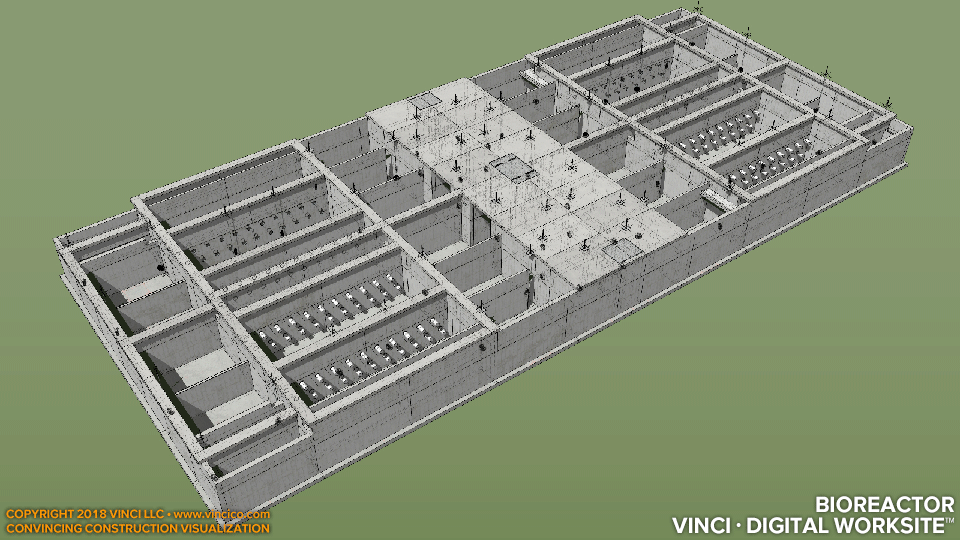

Vinci Digital Worksite™ model of the bioreactor for a waste water treatment facility at A9A09. Model includes footings, foundation walls, reinforced concrete walls and weirs, slabs on grade, formwork, reinforced masonry, structural steel, sluice gates, process mechanical including filters, water test meniscus, active water meniscus, connections to yard piping, and galvanized steel access stairs.
