Water Treatment Chlorine Contact Basin Model

Vinci Digital Worksite™ | Chlorine Contact Basin.

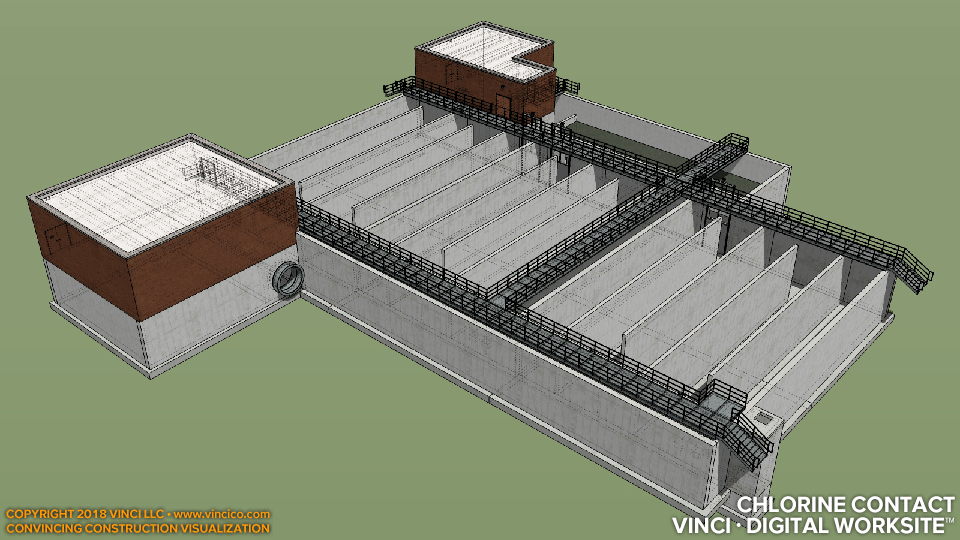

Vinci Digital Worksite™ model of the chlorine contact basin for a waste water treatment facility at A9A09. Model includes footings, foundation walls, reinforced concrete slabs, walls, and weirs, slabs on grade, formwork, reinforced masonry, structural steel with bar joists, metal deck, roofing, mechanical, face brick, fenestration and signage, electrical lights and panels, process mechanical including filters, water test meniscus, active water meniscus, connections to yard piping, and galvanized steel access walkways and stairs.
