Water Treatment Primary Clarifier Model

Vinci Digital Worksite™ | Primary Clarifier.

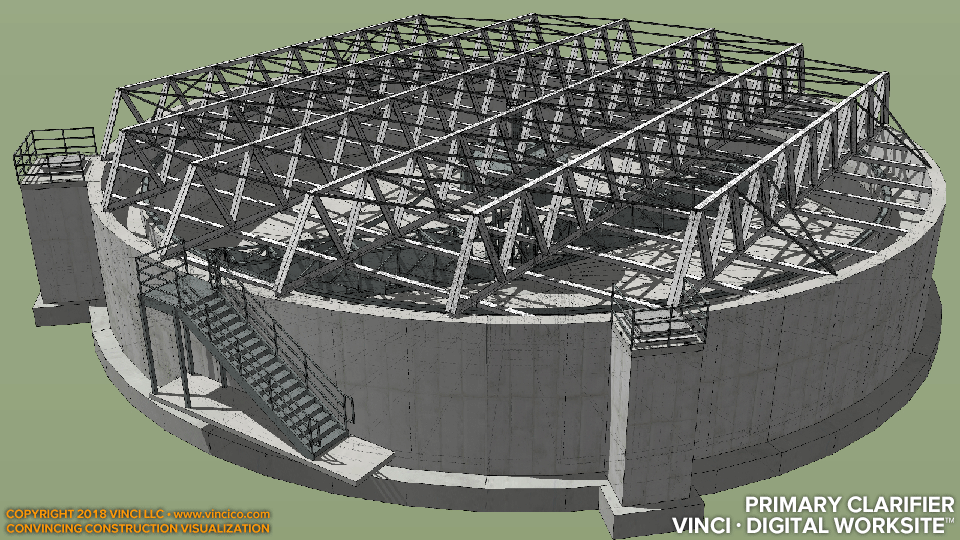

Vinci Digital Worksite™ model of a primary clarifier with odor control for a waste water treatment facility at A9A09. Model includes footings, foundation walls, reinforced concrete slabs, walls, and scum channels, formwork, structural trusses and decking, electrical lights and panels, process mechanical including scum apparatus and agitator, water test meniscus, active water meniscus, connections to yard piping, and galvanized steel access walkways and stairs.

Click for more: wet infrastructure project examples or modeled facilities, project schedule; preliminary facility scheduling.
