Water Treatment Final Clarifier Model

Vinci Digital Worksite™ | Final Clarifier.

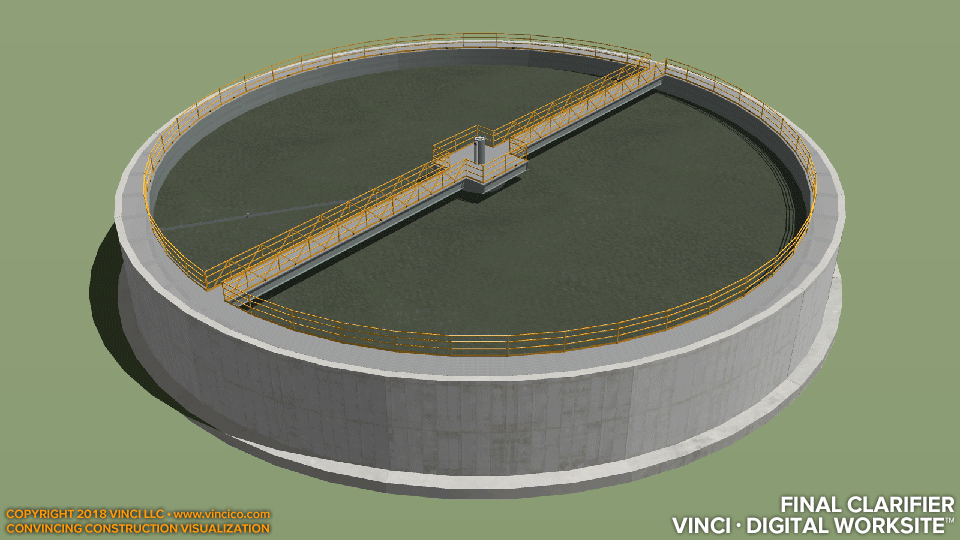

Vinci Digital Worksite™ model of a final clarifier for a waste water treatment facility at A9A09. Model includes footings, foundation walls, reinforced concrete slabs, walls, structural trusses, bridges, and decking, electrical lights and panels, process mechanical including agitator, water test meniscus, active water meniscus, connections to yard piping, and galvanized steel stairs.

Click for more: wet infrastructure project examples or modeled facilities, project schedule; preliminary facility scheduling.
