Water Treatment Chemical Building Model

Vinci Digital Worksite™ | Chemical Building.

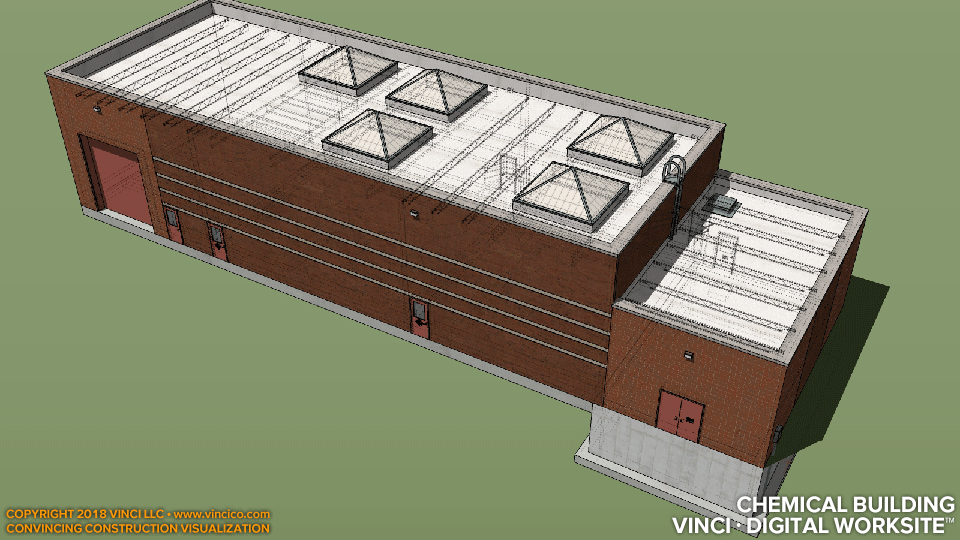

Vinci Digital Worksite™ model of a chemical building for a waste water treatment facility at A9A09. Model includes footings, foundation walls, concrete slabs on grade, formwork, structural steel and bar joists, metal decking, roof and wall insulation, face brick, fenestration, electrical lights and panels, sluice gates, process mechanical, and connections to yard piping.

Click for more: wet infrastructure project examples or modeled facilities, project schedule; preliminary facility scheduling.
