Water Treatment Chemical Building Model

Vinci Digital Worksite™ | Disinfection Chemical Building.

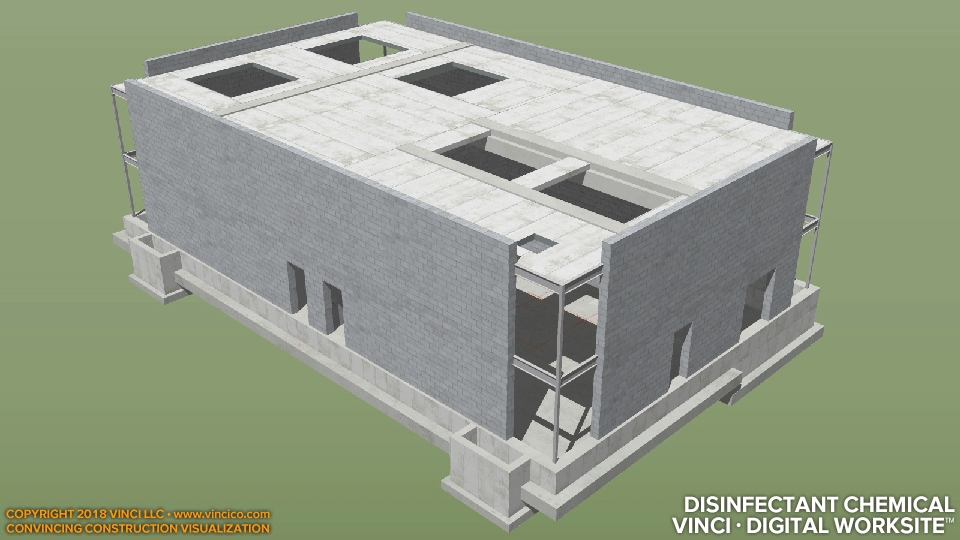

Vinci Digital Worksite™ model of a disinfection chemical building for a waste water treatment facility at A9A09. Model includes footings, foundation walls, concrete slabs on grade, basins, reinforced masonry, precast concrete planks, miscellaneous and structural steel, roof and wall insulation, face brick, fenestration, skylights, electrical lights and panels, sluice gates, process mechanical, and connections to yard piping.

Click for more: wet infrastructure project examples or modeled facilities, project schedule; preliminary facility scheduling.
