Water Treatment Splitter Box Model

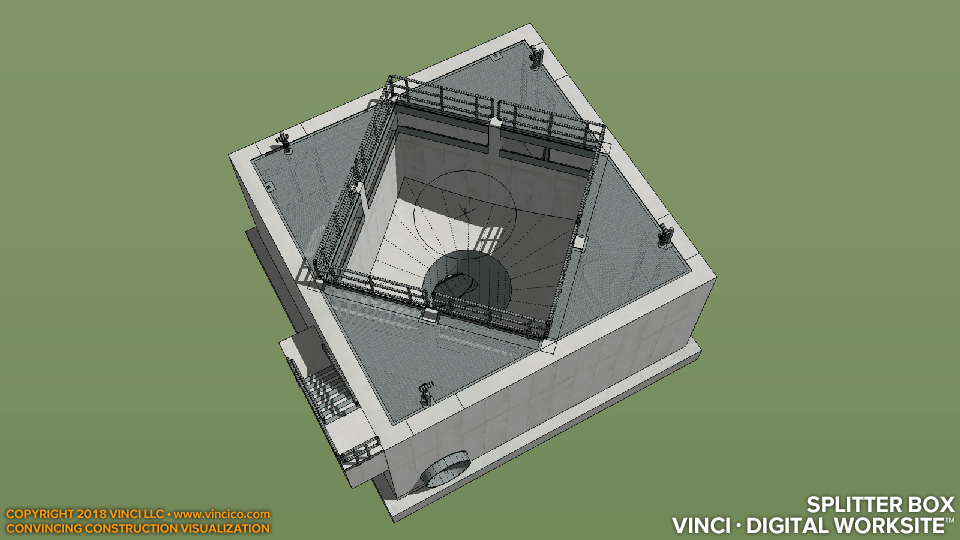

Vinci Digital Worksite™ | Final Clarifier Splitter Box.

Vinci Digital Worksite™ model of a disinfection chemical building for a waste water treatment facility at A9A09. Model includes footings, foundation walls, reinforced concrete walls and weirs, galvanized steel embeds, walkways, gates, and rails, electrical lights and panels, sluice gates, process mechanical, and connections to yard piping.

Click for more: wet infrastructure project examples or modeled facilities, project schedule; preliminary facility scheduling.
