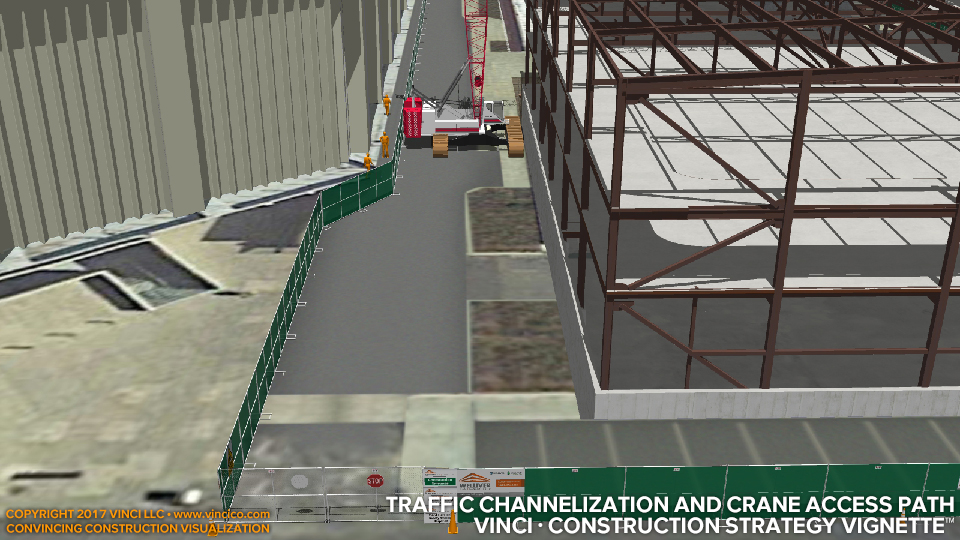

Vinci Preconstruction Vignette™ | Traffic Channelization and Crane Access Path.

This worksite detail is produced by a partially immersive preconstruction model. This model did not include a full proposed enclosure nor did it include most of the as-built conditions to the left and in a part of the remaining existing facility to which this addition connects (not visible — on purpose!) We can strike worksite detail from the partial models, but have to artfully dodge the areas that we do not model. This is a consequence of using montage as a shortcut. The montage was used to furnish the full worksite view and this supplement.

See the steel frame, existing site utilities, or the new sewer. Go behind the scenes to see how Vinci models structural framing from your team’s plans.
