preconstruction structural frame from structural drawings

Vinci · Behind the Scenes | Preconstruction Structural Frame Modeling.

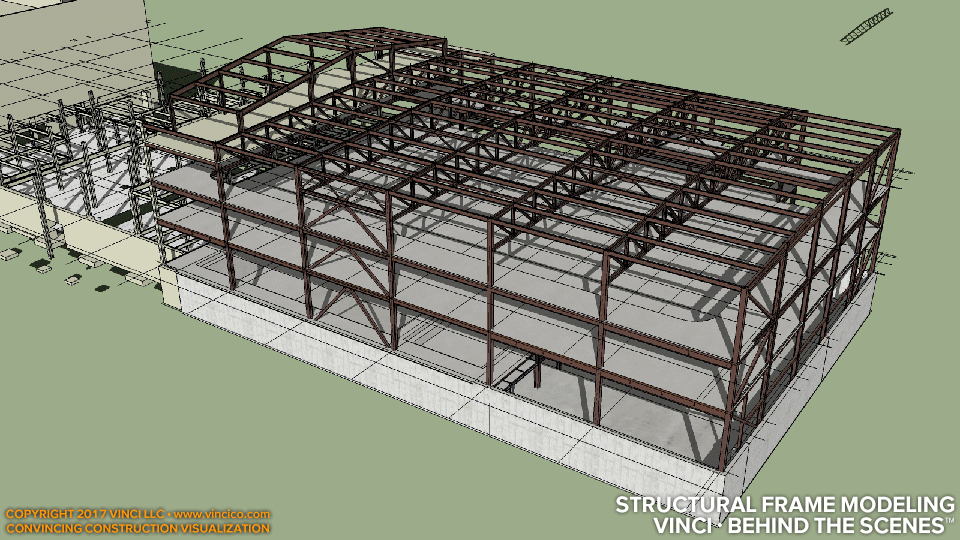

If you have a set of drawings, Vinci can weave a steel frame with major elements faithful to structural. We know where to look and most crucially, exactly what to ignore in order not to be confused and waste your time. Some of the elements of this frame can become points for laydown/staging stories if these apply. Some of these structural stories have won projects!

See the full worksite, steel framing underway, channelization, or existing underground MEP.
