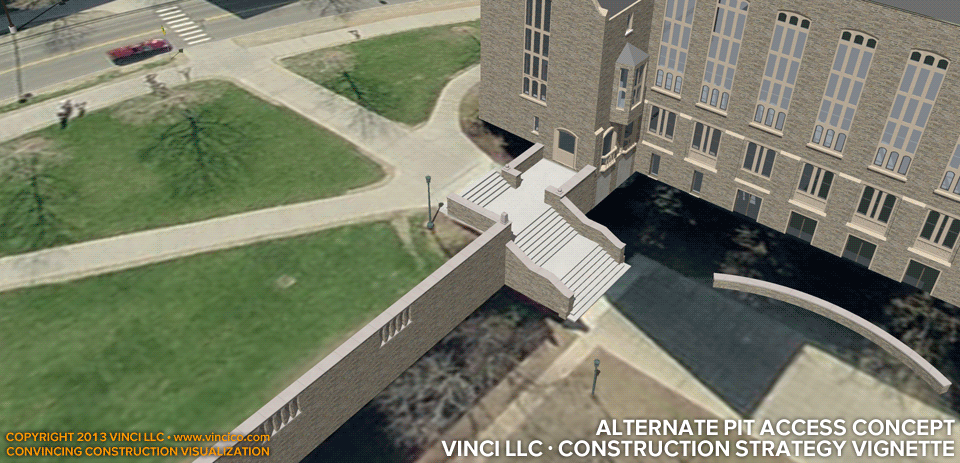

Vinci LLC | Construction Worksite Detail | Alternate Pit Access Concept.

An early pit access concept took advantage of the existing stair. The visualization validated this approach, and the client determined that underpinning would be too delayed to be effective. Excavation was moved forward in the schedule, and the access moved to the middle of the proposed building. Take a look at the final pit access concept here.

See the general view of the entire worksite. Check out a crosswise or lengthwise cross section of the building site. Get a closer look at underpinning.
