Water Treatment Peak Flow Pump Station Model

Vinci Digital Worksite™ | Peak Flow Pump Station.

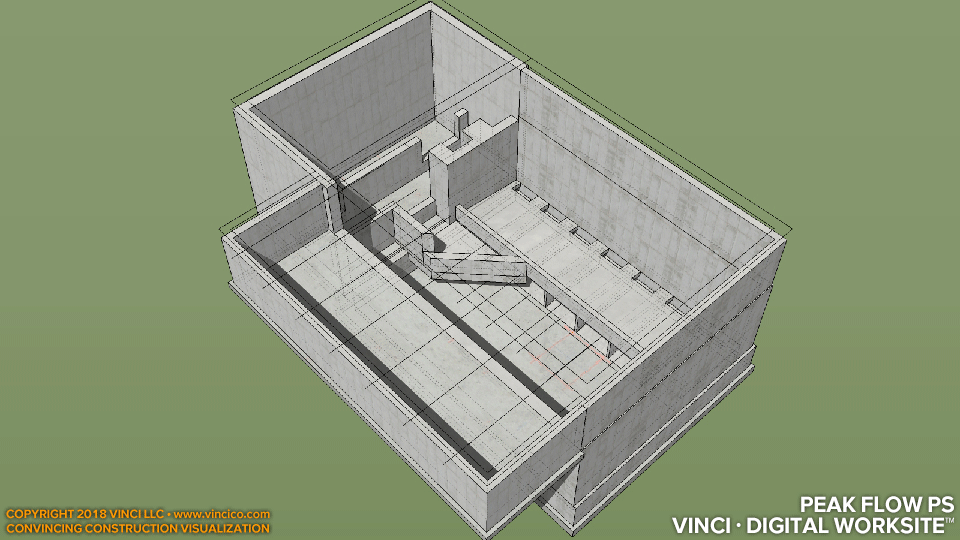

Vinci Digital Worksite™ model of a peak flow pump station for a waste water treatment facility at A9A09. Model includes steel pile bank retention, footings, foundation walls, reinforced concrete slabs, walls, and weirs, formwork, structural steel and bar joists, metal decking, roof and wall insulation, face brick, fenestration, electrical lights and panels, process mechanical, water test meniscus, active water meniscus, and connections to yard piping.

Click for more: wet infrastructure project examples or modeled facilities, project schedule; preliminary facility scheduling.
