R7B54 | Vinci™ Vignette | Runway Protection Zone | Analysis

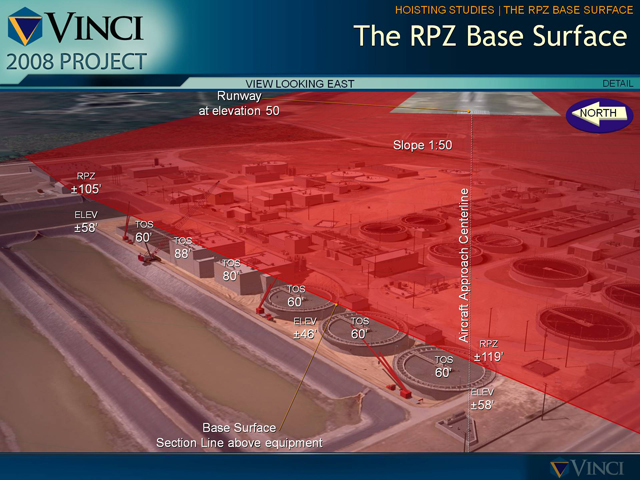

This image is proof positive that Vinci's client has acquainted themselves with the fulminating issue: is there a way to stay under the RPZ? Some of the estimates in the Vinci images communicated the issue to the audience members clearly for the first time, even though they had been reviewing engineers' technical data as conveyed by standard site plans.
