Water Treatment Plant Plantwide Study

Vinci Construction Vignette™ | Plantwide Study.

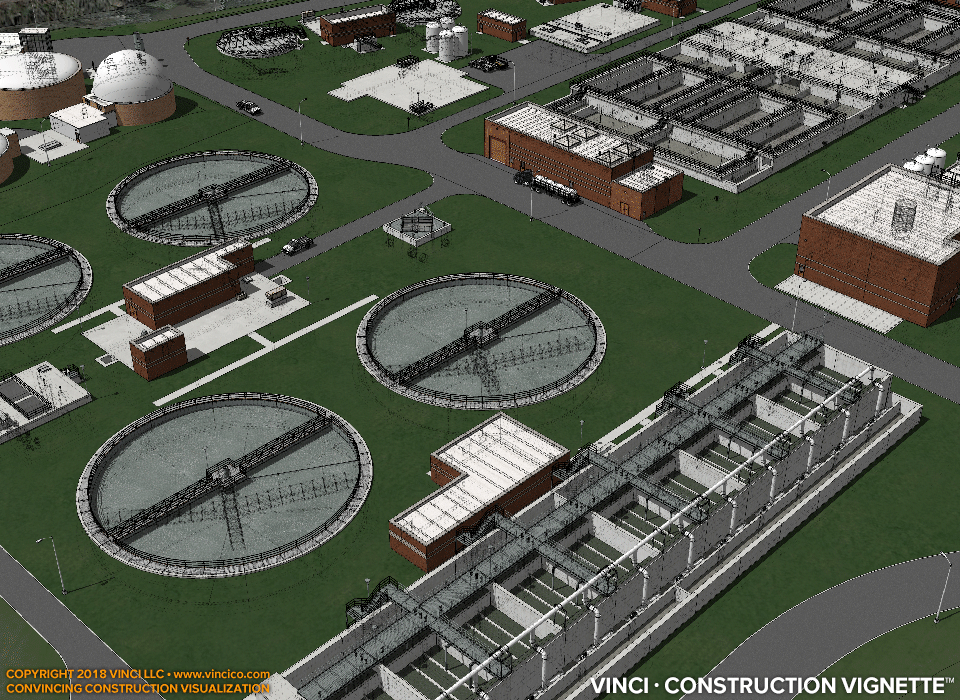

This is a survey of proposed facilities in place upon proposed terrain and sitework. This is a “check” to ensure that all the pieces are in place ahead of application of schedule to make for a 4d construction logistics plan. In these images, all major proposed facilities have structure, enclosure, and process mechanical in place. Some Vinci Digital Worksite™ models also include yard piping.

Click for more: plantwide schedule; excavation plan view, worksite model demolition, facility highlight, cutaway. Go behind the scenes to see terrain or context modeling, preliminary facility scheduling. Check out demolitions on other projects.
